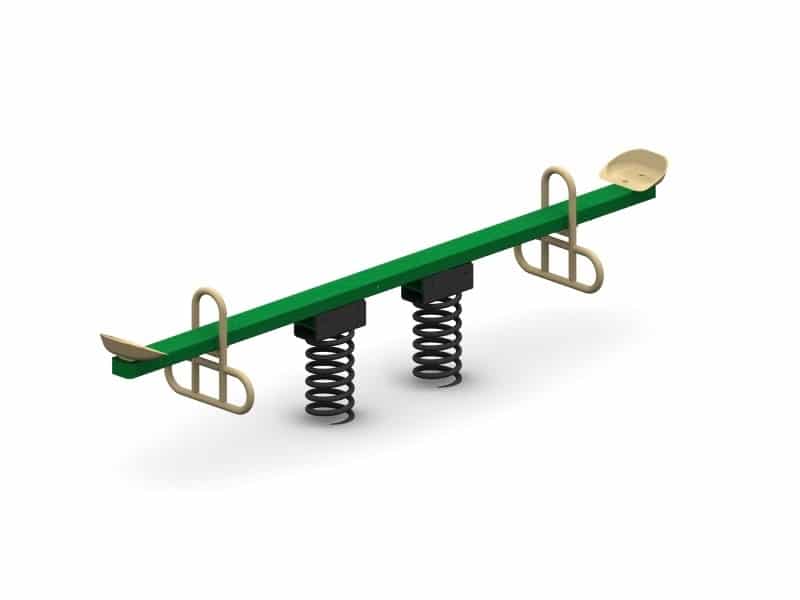

Description
Frame: Color Green powder coated,
2” x 4” rectangle steel tube.
Color Tan powder coat,
Cast Aluminum Seats
Color Tan powder coated,
14 gauge tubing
Spring: Color Black powder coated,
3/4” diameter coil with
welded steel 1/4” plated
sheet metal
Hardware: 318 Stainless Steel
Truss-Head bolts and
lock nuts
Dimensions:
Overall Height: 12” High
Approximate Square Feet: 231.97
Actual Size: 8’-2” x 1’-5”
Actual Use Zone: 20’-2” x 13’-5”
Assembled Weight: 166 lbs
Fall Zone: Overhead fall zone views are
for planning purposes only. Please follow
guidelines as specified by the CPSC and
ASTM F1487
